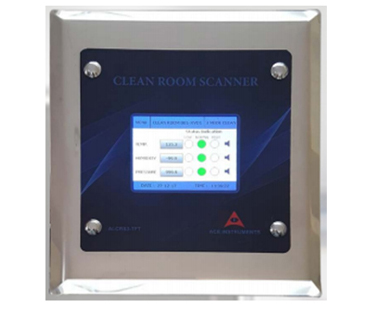

Clean Room Scanner (AI-CRS3A-TFT)

AI-CRS3A-TFT vs AI-CRS3-1C-FLP

Both scanners share the same core concept, three programmable external analogue inputs rather than built-in sensors, but they're built for very different installation environments.

AI-CRS3A-TFT (this model)
A scanner with a stainless steel front plate and MS back box, featuring a full-colour TFT display, suited for pharmaceutical cleanrooms, laboratories, hospitals, and manufacturing environments without hazardous-area classification.

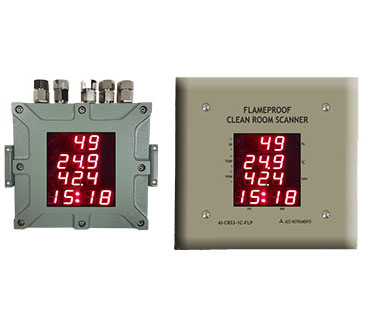

AI-CRS3-1C-FLP
A flameproof-rated scanner, built for the same external-input concept but housed in an enclosure certified for hazardous-area cleanroom installations where explosion risk is a factor.

In short: if your installation location doesn't require explosion-proof equipment, the AI-CRS3A-TFT's full-colour TFT display offers a clearer, higher-resolution interface at a more accessible cost. If the space is classified as hazardous, the AI-CRS3-1C-FLP's flameproof certification makes it the necessary choice, regardless of display preference.

Features

Full-Colour TFT Display
High-resolution display presenting all three monitored parameters in a clear three-line format.
Three Programmable Analogue Inputs (Optional RS-485 Modbus Inputs)
Accepts 0-10 VDC or 4-20 mA signals, compatible with a range of third-party transmitters, with RS-485 Modbus inputs available on request.
Engineering Unit Display
Each input shown with its corresponding unit for straightforward interpretation. Unit labelling can be customized based on user requirements.
Integrated Buzzer & Visual Alarm
Alerts on process-limit violation across temperature, humidity, and differential pressure, with the affected reading turning red for visual identification.
Front-Panel Alarm Acknowledgement
Flush acknowledgement key for confirming and clearing alarms.
Modbus Communication
Optional RS-485 Modbus output supports integration with a facility's BMS, SCADA, or PLC system for centralized monitoring.

Applications

Pharmaceutical Cleanrooms
Monitors temperature, humidity, and differential pressure together, supporting contamination control across manufacturing and packaging areas.
Healthcare and Hospital Controlled Areas
Tracks environmental conditions in clinical spaces requiring continuous local monitoring.
Laboratories
Supports process and sample stability monitoring where consistent environmental conditions matter.
HVAC-Controlled Rooms
Verifies that HVAC systems are maintaining required temperature, humidity, and pressure setpoints.
Manufacturing Cleanrooms
Monitors environmental conditions across production areas where contamination control affects product quality.
Research Facilities
Supports controlled-environment monitoring in research and testing settings.

Why External Analogue Inputs Matter

Unlike cleanroom instruments with fixed, dedicated sensors, the AI-CRS3A-TFT's programmable 0-10 VDC and 4-20 mA inputs, with RS-485 Modbus available on request, mean it isn't tied to one specific sensor type. This makes it particularly well suited to retrofit installations, where compatible transmitters may already be in place and only a consolidated display and alarm unit is needed, as well as new projects where the choice of transmitter brand or model is being made independently of the display instrument. It also means a single scanner design can serve slightly different measurement needs across projects, without requiring a different fixed-sensor model for each combination.

Parameter	Specification
Monitored Parameters	Temperature, Relative Humidity, Differential Pressure (standard configuration)
Inputs	3 analogue inputs, programmable for 0-10 VDC or 4-20 mA (optional RS-485 Modbus on request)
Display	Full-colour TFT display, 3-line display with engineering units, customizable based on user requirements
Alarm	Integrated buzzer and visual alarm (reading turns red on deviation), with front-panel acknowledgement key
Communication	Optional RS-485 Modbus for BMS/SCADA/PLC integration

Frequently Asked Questions

What is the AI-CRS3A-TFT Clean Room Scanner?

The AI-CRS3A-TFT is a cleanroom scanner designed to display three environmental parameters on a single high-resolution full-colour TFT screen. It's typically configured for temperature, relative humidity, and differential pressure monitoring in cleanrooms and other controlled environments.

How many parameters can the AI-CRS3A-TFT display?

The scanner supports three analogue inputs and provides a three-line display, allowing three process parameters to be monitored simultaneously. The standard configuration is temperature, humidity, and differential pressure.

What type of display does the scanner use?

The AI-CRS3A-TFT uses a full-colour, high-resolution TFT display. The three measured values are presented in a clear three-line format, with the engineering unit shown for each input.

Can the three inputs be configured for different transmitters?

Yes. The three analogue inputs are programmable for 0-10 VDC and 4-20 mA signals. This allows the scanner to work with compatible external transmitters according to the requirements of the cleanroom application.

Why monitor temperature, humidity, and differential pressure together?

These three parameters provide a useful overview of cleanroom environmental conditions. Temperature and humidity help maintain the required environmental conditions, while differential pressure helps verify the intended pressure relationship between the cleanroom and adjacent areas.

Can the AI-CRS3A-TFT monitor differential pressure from an external transmitter?

Yes. A compatible differential pressure transmitter can provide a 4-20 mA or 0-10 VDC signal to one of the scanner's analogue inputs. The scanner then displays the corresponding differential pressure value and engineering unit.

Can the scanner be connected to temperature and humidity transmitters?

Yes. Compatible temperature and humidity transmitters can be connected to the analogue inputs. This allows the scanner to display the temperature and relative humidity values together with differential pressure from a single instrument.

Does the scanner have an alarm function?

Yes. The AI-CRS3A-TFT has an integrated buzzer alarm for process-limit violations. The alarm function can be used for temperature, humidity, and differential pressure monitoring so that operators are alerted when a configured limit is exceeded.

Can the buzzer alarm be acknowledged?

Yes. The scanner includes an acknowledgement key that is flush with the front plate. Operators can use it to acknowledge the buzzer alarm after responding to the process-limit violation.

Can the AI-CRS3A-TFT be used in pharmaceutical cleanrooms?

Yes. The scanner is suitable for cleanroom applications where temperature, humidity, and differential pressure need to be monitored from a single local display. It can be used in pharmaceutical manufacturing and other controlled environments where these parameters are important.

Can the scanner be used for existing cleanroom installations?

Yes. Because the scanner accepts standard 0-10 VDC and 4-20 mA analogue signals, it can be incorporated into installations where compatible transmitters are already available. This can make it suitable for both new projects and retrofit applications.

What are the benefits of using a single scanner instead of separate indicators?

A single scanner provides a consolidated view of three parameters in one location. This reduces the need for multiple individual displays and allows operators to check temperature, humidity, and differential pressure together.

Does the scanner show the engineering units?

Yes. The three-line display is designed to show the engineering unit for each input, making the readings easier for operators to interpret.

What types of applications can use the AI-CRS3A-TFT?

Typical applications include pharmaceutical cleanrooms, healthcare and hospital controlled areas, laboratories, HVAC-controlled rooms, manufacturing cleanrooms, research facilities, and other controlled environments requiring local monitoring of temperature, humidity, and differential pressure.

What are the main advantages of the AI-CRS3A-TFT?

The main advantages include a full-colour, high-resolution TFT display, three programmable analogue inputs (with optional RS-485 Modbus), 0-10 VDC and 4-20 mA input compatibility, three-line parameter display, customizable engineering unit display, temperature, humidity, and differential pressure monitoring, integrated buzzer and visual alarm, front-panel alarm acknowledgement, and optional Modbus BMS integration.

How do I select the right configuration for the AI-CRS3A-TFT?

The configuration should be selected based on the three parameters to be monitored, the output signals of the connected transmitters, required alarm limits, and whether Modbus communication is required. For a standard cleanroom application, the typical configuration is temperature, relative humidity, and differential pressure. Ace Instruments can help determine the appropriate input and transmitter configuration for your application.
